Model Number: SPS75B17G3
Payment & Shipping Terms
Solid Power-DS-SPS75B17G3-S04010014 V1.0.

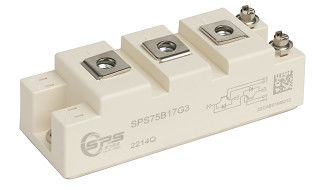

1700V 75A IGBT Half Bridge Module
![]()
Features:
Typical Applications:
IGBT, Inverter / IGBT,逆变器
Maximum Rated Values / 最大额定值
|
Item |
Symbol |
Conditions |
Value |
Units |
||
|
集电极-发射极电压 Collector-emitter voltage |
VCES |
Tvj=25°C |
1700 |
V |
||
|
连续集电极直流电流 Continuous DC collector current |
IC nom |
75 |
A |
|||
|
集电极重复峰值电流 Peak repetitive collector current |
ICRM |
tp=1ms |
150 |
A |
||
|
总功率损耗 Total power dissipation |
Ptot |
TC=25°C, Tvjmax=175°C |
535 |
W |
||
|
栅极-发射极峰值电压 Maximum gate-emitter voltage |
VGES |
±20 |
V |
|||
|
最高结温 Maximum junction temperature |
Tvjmax |
175 |
°C |
|||
|
Characteristic Values / 特征值 |
||||||
|
Item |
Symbol |
Conditions |
Min. Typ. Max. |
Units |
||
|
集电极-发射极饱和电压 Collector-emitter saturation voltage |
VCE(sat) |
IC=75,VGE=15V |
Tvj=25°C Tvj=125°C Tvj=150°C |
2.24 2.51 2.56 |
2.60 |
V V V |
|
栅极阈值电压 Gate threshold voltage |
VGE(th) |
IC=3mA, VCE=VGE, Tvj=25°C |
4.5 5.9 6.5 |
V |
||
|
栅极电荷 Gate charge |
QG |
VGE=-15V…+15V |
0.47 |
uC |
||
|
内部栅极电阻 Internal gate resistor |
RGint |
Tvj=25°C |
10.8 |
Ω |
||
|
输入电容 Input capacitance |
Cies |
f=1MHz, Tvj=25°C, VCE=25V, VGE=0V |
5.03 |
nF |
||
|
反向传输电容 Reverse transfer capacitance |
Cres |
f=1MHz, Tvj=25°C, VCE=10V, VGE=0V |
0.18 |
nF |
||
|
集电极-发射极截止电流 Collector-emitter cut-off current |
ICES |
VCE=1700V, VGE=0V, Tvj=25°C |
3.00 |
mA |
||
|
栅极-发射极漏电流 Gate-emitter leakage current |
IGES |
VCE=0V, VGE=20V, Tvj=25°C |
400 |
nA |
||
|
开通延迟时间(电感负载) Turn-on delay time, inductive load |
td( on) |
IC=75A, VCE=900V VGE=±15V RGon=6.6Ω RGoff=6.6Ω
Inductive Load, |
Tvj=25°C Tvj=125°C Tvj=150°C Tvj=25°C Tvj=125°C Tvj=150°C Tvj=25°C Tvj=125°C Tvj=150°C Tvj=25°C Tvj=125°C Tvj=150°C Tvj=25°C Tvj=125°C Tvj=150°C Tvj=25°C Tvj=125°C Tvj=150°C |
174 184
188 |
ns ns ns |
|
|
上升时间(电感负载) Rise time, inductive load |
tr |
80 83
81 |
ns ns ns |
|||
|
关断延迟时间(电感负载) Turn-off delay time, inductive load |
td(off) |
319 380
401 |
ns ns ns |
|||
|
下降时间(电感负载) Fall time, inductive load |
tf |
310 562
596 |
ns ns ns |
|||
|
开通损耗能量(每脉冲) Turn-on energy loss per pulse |
Eon |
24.7 27.6 28.4 |
mJ mJ |
|||
|
关断损耗能量(每脉冲) Turn-off energy loss per pulse |
Eoff |
10.9 16.1 17.5 |
mJ mJ |
|||
|
短路数据 SC data |
ISC |
VGE≤15V, VCC=1000V VCEmax=VCES-LsCE·di/dt, tp=10µs, Tvj=150°C |
240 |
A |
||
|
结-外壳热阻 Thermal resistance, junction to case |
RthJC |
Per IGBT / 每个 IGBT |
0.28 K/W |
|||
|
工作温度 Temperature under switching conditions |
Tvjop |
-40 150 °C |
||||
|
Diode, Inverter / 二极管,逆变器 Maximum Rated Values /最大额定值 |
||||||
|
Item |
Symbol |
Conditions |
Value Units |
|||
|
反向重复峰值电压 Peak repetitive reverse voltage |
VRRM |
Tvj=25°C |
1700 V |
|||
|
连续正向直流电流 Continuous DC forward current |
IF |
75 A |
||||
|
正向重复峰值电流 Peak repetitive forward current |
IFRM |
tp=1ms |
150 A |
|||
|
Characteristic Values / 特征值 |
||||||
|
Item |
Symbol |
Conditions |
Min. Typ. Max. Units |
|||
|
正向电压 Forward voltage |
VF |
IF=75A |
Tvj=25°C Tvj=125°C Tvj=150°C |
1.59 1.72 1.71 |
2.25 |
V V V |
|
反向恢复峰值电流
Peak reverse recovery current |
IRM |
IF=75A -diF/dtoff=1100A/µs VR =900 V
VGE=-15V |
Tvj=25°C Tvj=125°C Tvj=150°C |
85 101
108 |
A A A |
|
|
恢复电荷 Recovery charge |
Qr |
Tvj=25°C Tvj=125°C Tvj=150°C |
23.5 32.9 36.2 |
uC uC uC |
||
|
反向恢复损耗(每脉冲) Reverse recovery energy (per pulse) |
Erec |
Tvj=25°C Tvj=125°C Tvj=150°C |
11.8 17.8 19.6 |
mJ mJ mJ |
||
|
结-外壳热阻 Thermal resistance, junction to case |
RthJC |
Per diode / 每个二极管 |
0.48 K/W |
|||
|
工作温度 Temperature under switching conditions |
Tvjop |
-40 150 °C |
||||
Module / 模块
|
Item |
Symbol |
Conditions |
Value |
Unit s |
|
绝缘测试电压 Isolation test voltage |
VISOL |
RMS, f=50Hz, t=1min |
4.0 |
kV |
|
模块基板材料 Material of module baseplate |
Cu |
|||
|
内部绝缘 Internal isolation |
基本绝缘 (class 1, IEC 61140) Basic insulation (class 1, IEC 61140) |
Al2O3 |
||
|
爬电距离 Creepage distance |
端子-散热片 / terminal to heatsink 端子-端子/terminal to terminal |
17
20 |
mm |
|
|
电气间隙 Clearance |
端子-散热片 / terminal to heatsink 端子-端子/terminal to terminal |
17 9.5 |
mm |
|
|
相对电痕指数 Comparative tracking index |
CTI |
>200 |
|
Item |
Symbol |
Conditions |
Min. |
Typ. |
Max. |
Units |
|
杂散电感,模块 Stray inductance module |
LsCE |
30 |
nH |
|||
|
模块引脚电阻, 端子-芯片
Module Lead Resistance ,Terminals-Chip |
RCC’+EE’ RAA’+CC’ |
0.65 |
mΩ |
|||
|
储存温度
Storage temperature |
Tstg |
-40 |
125 |
°C |
||
|
模块安装的安装扭距 Mounting torque for module mounting |
M |
M6 |
3.00 |
5.00 |
Nm |
|
|
端子联接扭距 Terminal connection torque |
M |
M5 |
3.00 |
5.00 |
Nm |
|
|
重量
Weight |
G |
160 |
g |
IGBT IGBT
Output characteristic IGBT, Inverter (typical) Output characteristic IGBT, Inverter (typical)
IC=f (VCE) IC=f(VCE)
VGE=15V Tvj=150°C
![]()
IGBT IGBT
Transfer characteristic IGBT, Inverter (typical) Switching losses IGBT, Inverter (typical)
IC=f(VGE) E=f(IC)
VCE=20V VGE=±15V, RG=6.6Ω, VCE=900V
![]()
IGBT IGBT
Switching losses IGBT, Inverter (typical) Switching losses IGBT, Inverter (typical)
E=f (RG) E=f(IC)
VGE=±15V, IC=75A, VCE=900V VGE=±15V, RG=6.6Ω, VCE=900V
![]()
IGBT IGBT
Switching losses IGBT, Inverter (typical) Transient thermal impedance IGBT, Inverter
E=f (RG) ZthJC=f (t)
VGE=±15V, IC=75A, VCE=900V
![]()
IGBT,RBSOA
Reverse bias safe operating area IGBT, Inverter (RBSOA) Forward characteristic of Diode, Inverter (typical)
IC=f (VCE) IF=f (VF)
VGE=±15V, RGoff=6.6Ω, Tvj=150°C
![]()
Switching losses Diode, Inverter (typical) Switching losses Diode, Inverter (typical)
Erec=f (IF) Erec=f (RG)
RG=6.6 Ω, VCE=900V IF=75A, VCE=900V
![]()
Transient thermal impedance Diode, Inverter
ZthJC=f (t)
![]()
A "1700V IGBT" is an Insulated Gate Bipolar Transistor capable of handling a maximum voltage of 1700 volts. It is used in applications that require the management of higher voltage levels, such as high-power inverters, motor drives, or power supplies. Proper cooling and gate drive circuitry are essential for optimal performance. Detailed specifications can be found in the manufacturer's datasheet.
![]()
Circuit diagram headline
![]()
Package outlines
![]()
